Toolbar In Android Studio

2 min readJul 26, 2021

Hi everyone, in this wirting I will talk about Toolbar in Android Studio and how to use that.

What’s Toolbar ?

To briefly talk about the Toolbar, it is actually a ViewGroup that comes to Android with API 21 (Android Lollipop)
and is used instead of the ActionBar that comes to our project by default.

Why we use `Toolbar`?

Maybe you’re wondering that if ActionBar is available by default in project, then why we use Toolbar instead of ActionBar in our projects .
There are many reason for this. Firstly, you can set(color,shape,title on it,) toolbar more easily, also can set location in layout(top,bottom,right and left,middle).

How To Use In Android Studio ?

In order to use the Toolbar, we first need to disable the default ActionBar.For this you need to open themes file in values folder and turn ActionBar to NoActionBar there.

By doing so, we got rid of ActionBar that comes by default. Now we can add Toolbar in our page.
To make it,we go to XML layout file of activity we want to add Toolbar and then add the following to the XML file.

<androidx.appcompat.widget.Toolbar
    android:id="@+id/toolbar"
    android:layout_width="0dp"
    android:layout_height="?attr/actionBarSize"
    android:background="@color/design_default_color_primary"
    android:theme="@style/ThemeOverlay.AppCompat.Dark"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toTopOf="parent" />

?attr/actionBarSize is the attribute to gives heigh of the ActionBar to Toolbar.

Finally, we need to connect the activity and Toolbar we created

import androidx.appcompat.app.AppCompatActivity;
import androidx.appcompat.widget.Toolbar;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //Oluşturduğumuz Toolbar'ı id ile bağlıyoruz
        Toolbar toolbar = findViewById(R.id.toolbar);

        // Bunu yaparak da actionbar olarak artık oluşturdğumuz        toolbarı kullancağımızı bildirmiş oluyoruz.
        setSupportActionBar(toolbar);

        // Başlık ve ve altbaşlığını düzenlemek
        getSupportActionBar().setTitle("Toolbar Example");
        getSupportActionBar().setSubtitle("Subtitle of Toolbar");

        // Toolbar'a icon eklemek
        getSupportActionBar().setIcon(R.drawable.menu_icon);

    }
}

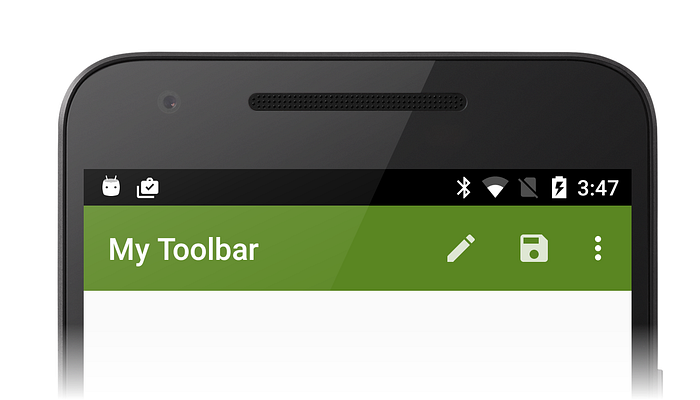

Yes now our Toolbar is complete.In code above I tried to talk about some of attributes of Toolbar,
otherwise there are several attributes for Toolbar available in Anroid Studio to set Toolbar.
